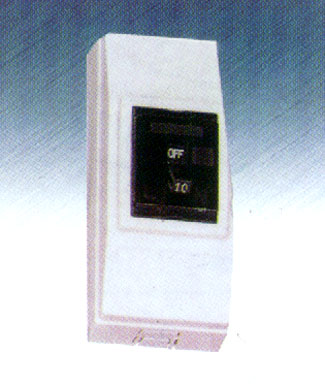

| NT-50 Safety Switch |
 |
Application:
NT-50 is used as overloading protection in illumination circuit and household electrical apparatus. |
|
| Technical Specification: |
| Poles |
2p |
| Rated Voltage (V) |
AC 240V |
| Rated Current |
5,10,15,20,25,30A |
| Rated Capacity of Short Circuit Breaking |
1.5KA |
|
| |

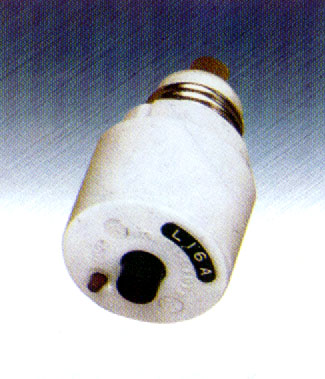

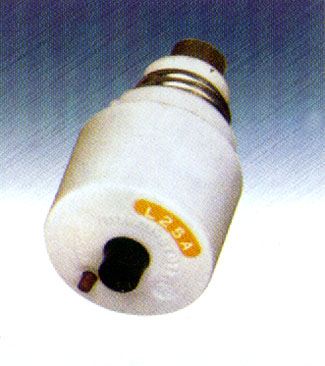

| S101 Screw Circuit Breaker |
 |
Application:
Type S101 overcurrent system breakers have been produced in accordance with DIN 57641(VED 0641) and are designed to protect domestic wiring systems against overload and short-circuit current.
Type S101 breaker is a durable protection that substitue the traditional fuse element and can be used in each fuse-socket with E27 thread according to DIN 40400, type D 11 according to DIN 49510. |
 |
| Technical Specification: |
| Poles |
1p |
| Rated Voltage (V) |
AC 240V/415V |
| Rated Current |
6,10,16,20,25A |
| Rated Capacity of Short Circuit Breaking |
3KA |
| Rated Frequency |
50Hz/60Hz |
|
