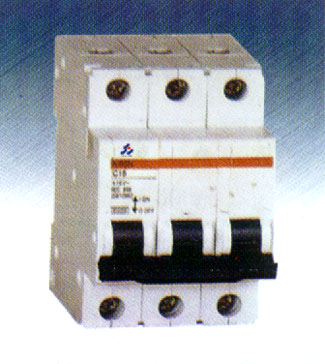

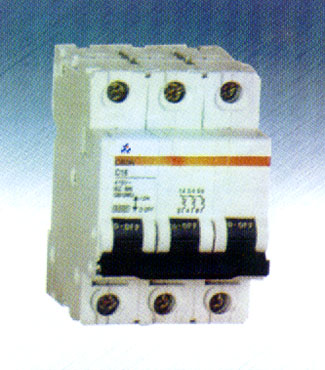

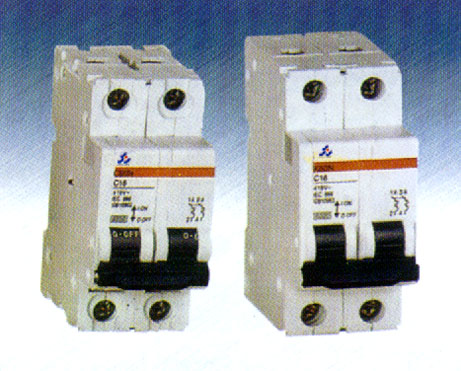

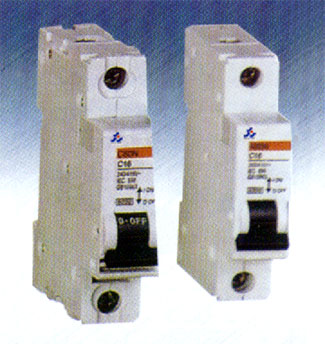

C60N K60N Miniature Circuit Breaker
	Application: The C60N and K60N are latest advanced substitues for the older generation as DZ47(C45N). They have protective functions as shortage and overlaoding, and are used in lighting distribution system in industry, commerce and dwelling and as protection to fractional electric motors. They also have a great deal of merits of high protective grade (upto 1P20), high breaking capacity, good reliability of sensitive action, convenient multipole assorting, long service life,etc. They are mainly adapted to the circuit of AC50Hz 230V in single pole,400V in double,triple and quadriple pole for protecting overloading and shortage. They are also used in turning on and off the electric apparatus and lighting circuit under normal condition.
	Technical Specification: Poles 1P, 2P, 3P, 4P Rated Voltage (V) 230V/400V Rated Current 1,2,3,4,6,10,16,20,25,32,40,50,60A Characteristic Curve: IEC898 B,C,D Rated Capacity of Short Circuit Breaking 6KA Mechanical life 60,000 times Protective Grade IP 20 Tropicaliration Treatment 2   (RH95% at 55oC)
