W-40 Miniature Circuit Breaker
W-40 Application:
W-40 MCB is suitable to be used in circuit 50Hz/60Hz, 240V/415V, rated current upto 40A with the function of overload or short-circuit protection.
Technical Specification:
Poles 1P , 2p , 3p
Rated Voltage (V) 240V / 415V
Rated Current 2,4,6,10,16,20,25,32,40A
Characteristic Curve: L IEC898 B,   G IEC898 C
Rated Capacity of Short Circuit Breaking 6KA
Accord with Standards >IEC898 BS3871

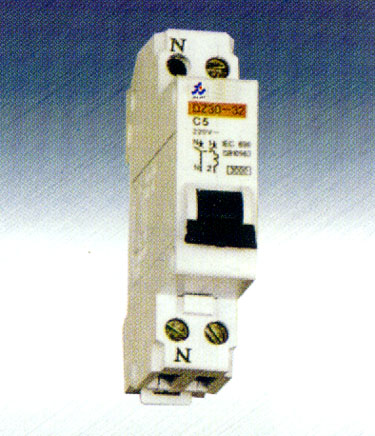

DZ30-32(DPN) Miniature Circuit Breaker
DZ30-32 Application:
The product, used to protect lineconductor and overload,and short-circuit of small scale motors, is mainly mainly for AC220V and 50Hz/60Hz, and forrun-frequent conversion under normal condition as well. Its action can be as up 22-pole with its only one-pole volume and it can be as a leakage breaker by assembling with leakage.
Technical Specification:
Poles P+N=18mm
Rated Voltage (V) AC 220V
Rated Current 2,4,6,10,16,25,32A
Characteristic Curve: IEC898 B,C
Rated Capacity of Short Circuit Breaking 3KA
Mechanical life 6,000 times
Accord with Standards IEC898-87, GB10963-89, BS3871
