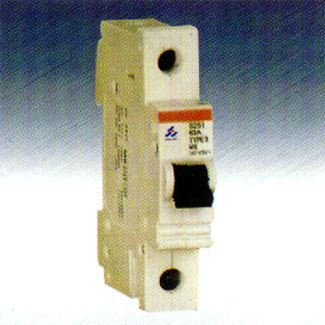

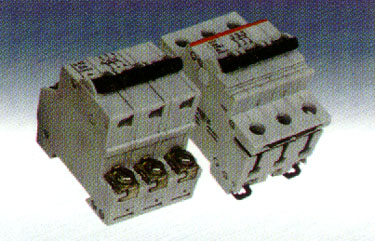

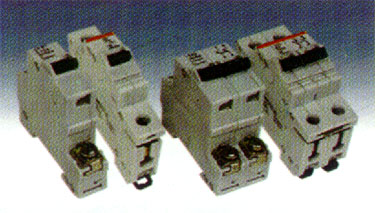

S230 S060 Circuit Breaker
	Application: S230 S060 miniature circuit breaker are mainly suitable for overload and short circuit protection within the circuit of AC 50/60 Hz, rated voltage of single pole up to 240V, two or three pole up to 415V and rated current up to 60A, it can also be used for an unfrequent switchover of the circuit and illumination under normal condition. The hewly developed S230 switches, conforming to the Standards of the 15th published of IEC364, IEE can pretect the connectors of different parts in all.
	Technical Specification: Poles 1P , 2p , 3p Rated Voltage (V) 240V / 415V Rated Current 2,4,6,10,16,20,25,32,40,50,60A Characteristic Curve: BS 3871 Type2 Type3 Rated Capacity of Short Circuit Breaking 3KA Rated Current of frame 60A Mechanical and Electrical life 6,000 times

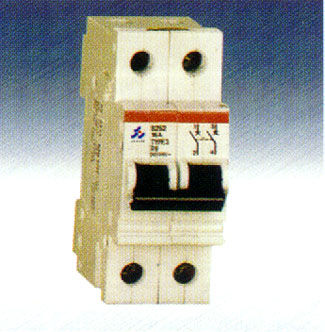

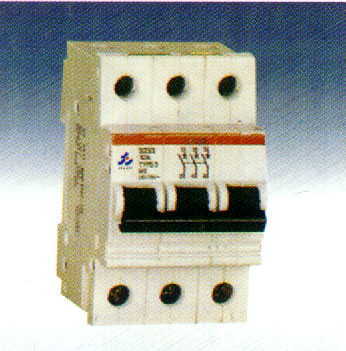

S250 High breaking capacity Breaker
	Application: To protect overload and short-circuit and to control on-off of electric circuit equipments in industry, commerce, and dwelling etc.
	Technical Specification: Poles 1P , 2p , 3p Rated Voltage (V) AC 50Hz/60 Hz , 240V/415V Rated Current 2,4,6,10,16,20,25,32,40,50,63A Characteristic Curve: BS 3871 Type2 Type3 Rated Capacity of Short Circuit Breaking 6KA Mechanical and Electrical life 6,000 times Accord with Standards IEC898; BS 3871; GB10963
