BH Miniature Circuit Breaker

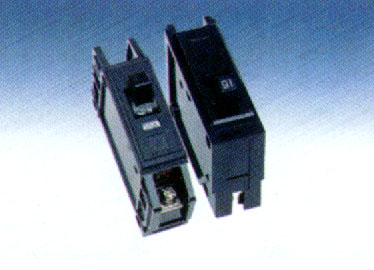

BH 1P

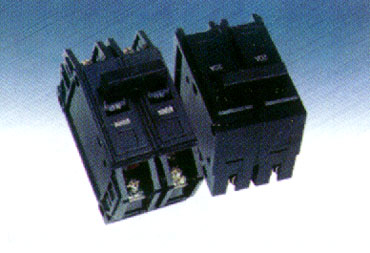

BH 2P

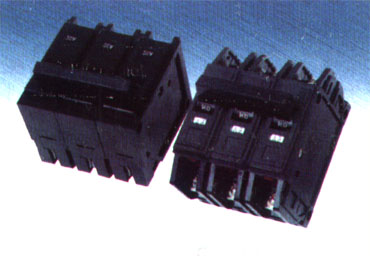

BH 3P		 Application:
Widely used in personal and public builings.   In AC circuits 240V (with single pole) up to 415V (with 3-pole) 50 Hz for protection of overlaod short circuit and for circuit change-over in lighting system.
Technical Specification:
Poles: 1P , 2P , 3P
Rated Voltage (V): 240V , 415V
Rated Current (A): 6, 10, 15, 20, 30, 40, 50, 60A
Rated Short Circuit Break Capacity: 3 KA

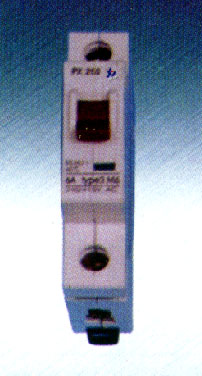

PX 300 miniature Circuit Breaker
PX 300 Aplication:
The newest generation of mini circuit breakers with the characteristics of small sized, high senitivity, long service life and strong protective functions for shortage and overload.   Its used for illumination and distribution in industry, commerce and buildings.

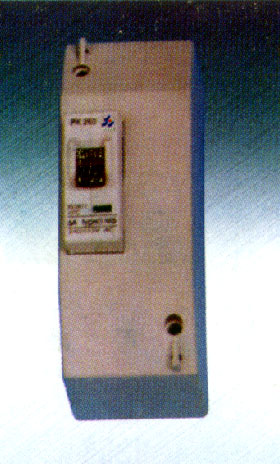

PX 300C
Technical Specification:
Poles 1P , 2p , 3p , 4P
Rated Voltage (V) 240V / 415V
Rated Current 1,3,5,10,15,20,25,32,40,60A
Characteristic Curve: IEC898, C,D
Rated Capacity of Short Circuit Breaking 8KA
Mechanical and Electrical life 20,000 times
Tropicaliration Treatment 2 (RH 95% at 55oC)
