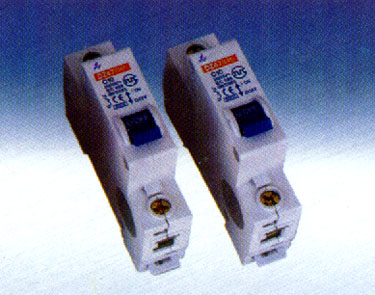

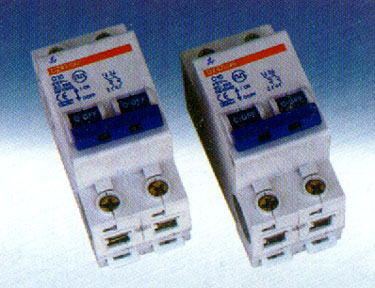

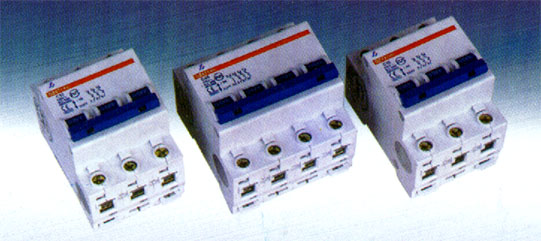

| DZ47-60(C45N) Miniature Circuit Breaker |
 |
Application:
DZ47-60(C45N) miniature Circuit breaker is mainly suitable for overload and short circuit protection within the circuit of AC 50/60 Hz,
rate voltage of single pole up to 240 Volt, two, three or four poles up to 415 Volt. It is used for illumination and distribution in industry and commerce.
Its frame and parts adopt plastics; light weight, reliable performance, high inflammable resistance and shock-resistance for long service life. |
 |
| Technical Specification: |
| Poles |
1P , 2p , 3p , 4P |
| Rated Voltage (V) |
240V / 415V |
| Rated Current |
1,3,5,10,15,20,25,32,40,60A |
| Characteristic Curve: |
IEC898, B,C,D |
| Rated Capacity of Short Circuit Breaking |
6KA |
| Electrical life |
>6000 times |
| Mechanical life |
20,000 times |
| Tropicaliration |
Treatment 2 (RH 95% at 55oC) |
|
 |

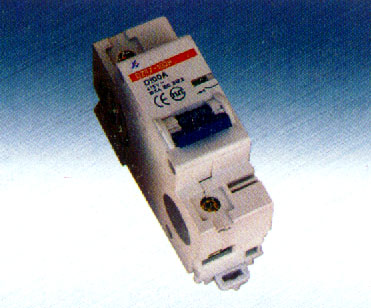

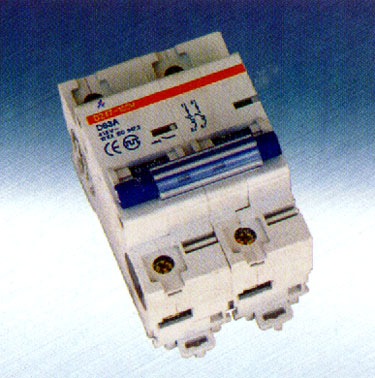

| DZ47-100(NC100H) Miniature Circuit Breaker |
 |
Application:
Control and protection fo circuits against overloads and short-circuits in industrial and commercial distribution system. |
 |
| Technical Specification: |
| Poles: |
1P , 2P , 3P , 4P |
| Rated Current (A) |
50 , 63 , 80 , 100A |
| Characteristic Curve: |
IEC 898 , C, D |
| Rated Short Circuit Break Capacity (KA): |
IEC 947-2 10KA |
| Mechanical & Electrical life: |
20,000 times |
| Tropicaliration: |
Treatment 2 (RH95% at 55o
|
| Connection Method: |
50mm2 for rating |
|
